Focus rings and paint containment

A focus indicator is the visible mark showing which control the keyboard is on. It is required: WCAG 2.4.7 Focus Visible makes it a Level AA criterion, and WCAG 2.2 added 2.4.11 Focus Not Obscured specifically because an indicator that exists but cannot be seen is no better than none.

Most sites draw it with outline, for a reason worth knowing: unlike border, an outline takes no space in the layout, so adding one on focus never shifts the page. outline-offset then controls where it sits relative to the element — positive values push it outward, negative values pull it inward. The modern pattern pairs this with :focus-visible, which lets the browser decide when an indicator is warranted, so keyboard users get a ring and a mouse click on a button does not.

The failure mode: an outline is painted outside the element’s border box, so any ancestor that clips painting will clip it away. Three common declarations do that:

• overflow: hidden (and auto/scroll)
• contain: paint or contain: content
• anything else establishing a paint-clipping context

Put a focusable child that fills its container inside one of those, give it an outset ring, and the ring lands just past the clip edge and vanishes. Any box that paint-contains its content and holds a focusable child filling it needs an inset focus ring instead. This is a silent accessibility failure — nothing errors, nothing looks wrong in the stylesheet, and a keyboard user simply sees nothing when they tab to the control. It is invisible in code review and obvious the moment you press Tab, which is why the check has to happen in a browser.

In jedee

The site’s focus ring is outset by design: global-styles.css suppresses the always-on ring with :focus { outline: none } and restores a strong one on :focus-visible, drawn with --focus-color and offset outward by --focus-offset (0.3ch). Tokenizing the offset is what makes the fix below a one-property override rather than a re-declaration of the whole outline. This is Eleventy Excellent stock; the clipping cases below are jedee’s own.

The case that found it

lite-youtube sets contain: content on itself, and its play button fills the whole embed. Tabbing to a video showed no indicator at all. The fix is to invert the offset for that one control so the ring lands inside the box:

is-land lite-youtube .lyt-playbtn { --focus-offset: -4px; }

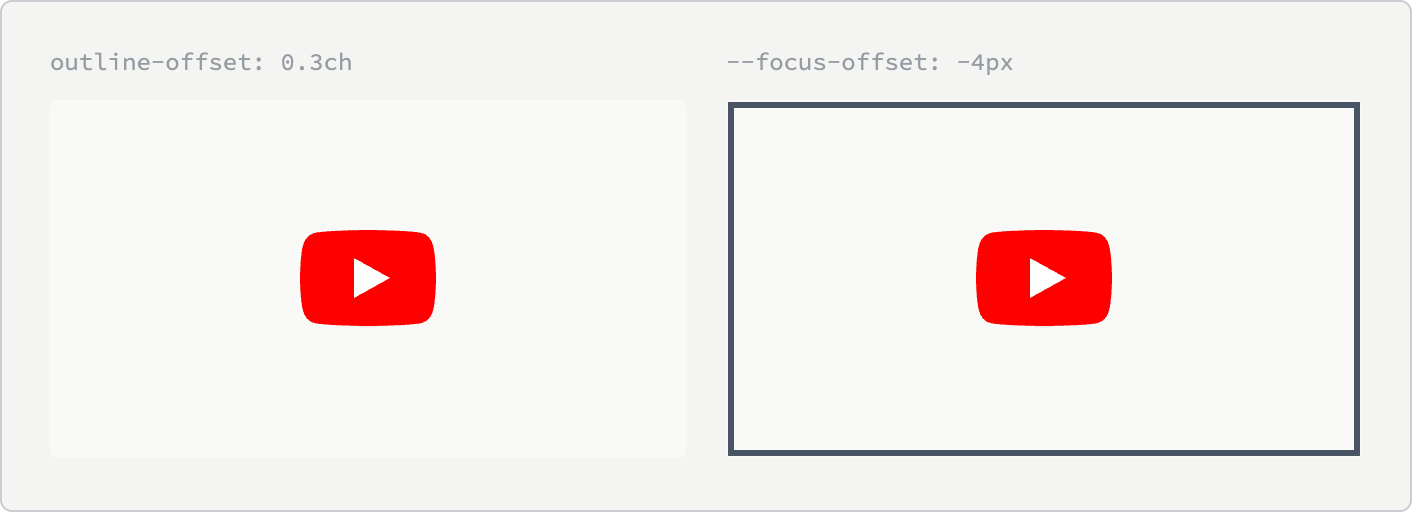

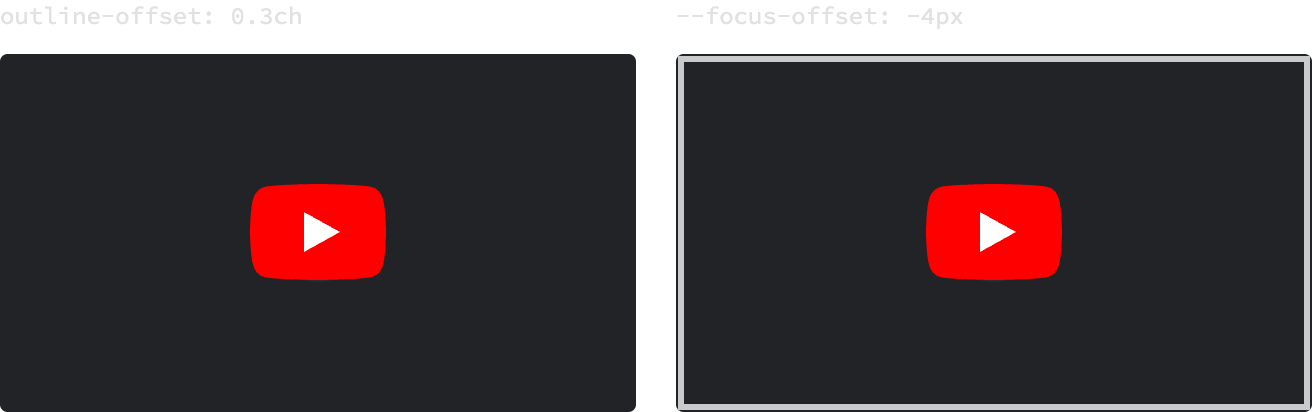

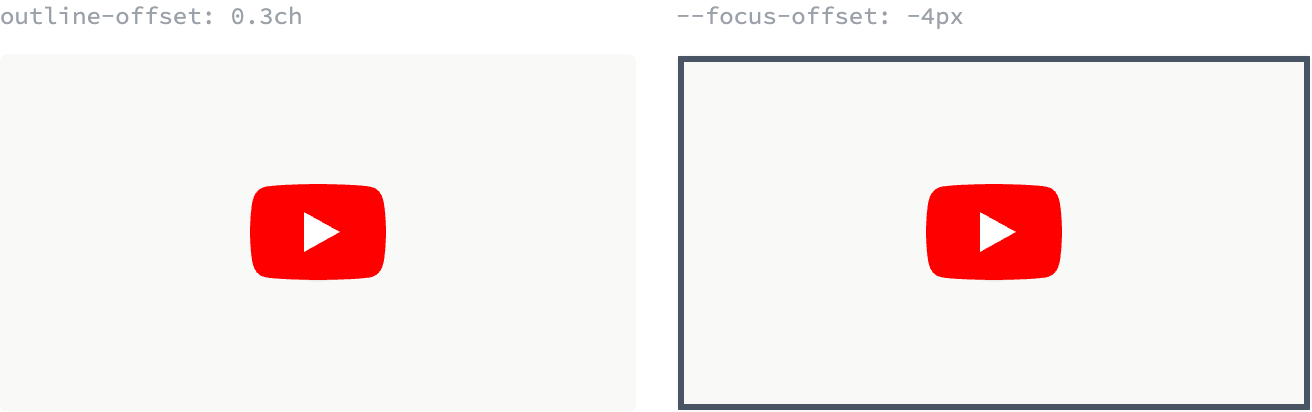

The mockup is src/wiki/_sources/focus-rings.html, drawing the real lite-yt-embed rules and the real :focus-visible declaration; npm run mockups re-shoots it. It shows the embed in its pre-hydration placeholder state rather than over a video poster, because the poster is fetched at build time and is not what is being compared. Both halves keep contain: content — the fix does not remove the containment, it moves the ring inside it — so the offset is the only thing that differs.

⚠ “Sees nothing” is very slightly stronger than the truth. lite-yt-embed ships .lyt-playbtn:focus { filter: none } over a base filter: grayscale(100%), so tabbing to the button does turn the glyph from gray to red — visible in the shot above, where both buttons are focused and both are red. That color change is not a focus indicator in any deliberate sense: it belongs to the embed’s own hover styling, it is a filter on a graphic rather than a bounded indicator, and it disappears the moment the poster loads behind a button that was already colored. The site’s actual indicator is the outline, and the outline was gone.

The trap that made it worse

The first attempt at rounding the fading poster’s corners used overflow: hidden on the wrapper — which added a second clip on top of lite-youtube’s own containment. The corners are now rounded with border-radius on both layers instead, so nothing clips the ring. Reach for border-radius before overflow: hidden when the only goal is rounded corners.

What to check

When adding any facade-style component — a video poster, a map canvas, a card that’s one big link — ask whether the container clips paint and whether the focusable thing fills it. If both, set --focus-offset negative on that control. Verify by tabbing to it, not by reading the CSS: the failure is invisible in the stylesheet and obvious in the browser.

⚠ Don’t “fix” the :focus { outline: none } line in global-styles.css. It is not the bare-outline:none anti-pattern — the paired :focus-visible rule restores a strong ring for keyboard users, and removing it brings back the mouse-click rings the design deliberately drops.

See also The YouTube embed, where this surfaced.

Raw source: src/_raw/dev-notes/How the YouTube embed loads.md
