Layout breakouts

A reading page wants one narrow column for prose and the occasional element wider than it — a diagram, a code block, a full-bleed image. The old way was negative margins, which fight the page’s own padding and break at small widths.

The current technique is Ryan Mulligan’s layout breakouts: make the container a grid with several symmetric named columns, put everything in the middle one by default, and let an element opt into a wider pair of grid lines. Nothing is positioned; the element simply spans different named lines.

.wrapper {
  --gap: clamp(1rem, 6vw, 3rem);
  --full: minmax(var(--gap), 1fr);
  --content: min(var(--wrapper-width, 85rem), 100% - var(--gap) * 2);
  --popout: minmax(0, 2rem);
  --feature: minmax(0, 5rem);

  display: grid;
  grid-template-columns:
    [full-start] var(--full)
    [feature-start] var(--feature)
    [popout-start] var(--popout)
    [content-start] var(--content) [content-end]
    var(--popout) [popout-end]
    var(--feature) [feature-end]
    var(--full) [full-end];
}

.wrapper > * { grid-column: content; }
.popout      { grid-column: popout; }
.feature     { grid-column: feature; }
.full        { grid-column: full; }

Two details do most of the work. The [name-start] / [name-end] line names mean grid-column: popout is a complete instruction — CSS resolves a bare name to its -start/-end pair. And --content is a min() of a maximum width and 100% - gap * 2, so the content column is capped on a wide screen and still leaves a margin on a narrow one, with no media query anywhere.

The catch is that these classes only work on a direct child of the grid. grid-column is a property of a grid item, and a grid item is a direct child. Wrap the content in anything — a container element, a component’s own root, a plugin’s output — and every breakout class inside it silently does nothing. There is no error; the element just renders at content width, which is exactly what it would do if the class were misspelled. This is the single thing that makes breakouts fiddly in real templates, and it has more than one answer depending on what did the wrapping.

subgrid is the general answer where the wrapper is yours: a direct child that spans the full track and re-declares grid-template-columns: subgrid republishes the parent’s named lines to its own children, so the breakout classes work one level deeper.

The second silent failure: a breakout doesn’t exist until the content column stops growing

The technique has a second way to go quietly wrong, and it is the opposite shape of the first. Here the class is on the right element, it is a direct grid child, and it still does nothing — on most screens.

The outer tracks are sized minmax(0, 2rem) and minmax(0, 5rem): a zero minimum and a fixed maximum. The content track, meanwhile, is min(--wrapper-width, 100% - gap * 2), so below a certain width it grows with the container and takes all the space there is. Only once the container is wide enough for --wrapper-width to win that min() does any free space appear for the outer tracks to grow into. The threshold is exactly --wrapper-width + 2 × --gap, and below it every breakout class renders at content width — identical to no class at all.

Past the threshold the free space is handed to the four growable inner tracks in step, so .popout reaches its full 2rem a further 4 × 2rem = 128px up, and .feature keeps growing after that. Measured against the stylesheet, at a viewport wide enough to pin --gap at its 3rem maximum:

The practical consequence: the wider you set --wrapper-width, the further off-screen you push your own breakouts. At 64rem the popout is live from 1120px, an ordinary laptop. At 85rem it stays dead until 1456px and only reaches full width at 1585px — so on a 1440px laptop it is invisible, and on an external display it suddenly makes the element 4rem wider than the widest text on the page. A breakout in a wide container is therefore not a subtler version of a breakout in a narrow one; it is a class that does nothing most of the time and something unintended the rest.

Which says what the classes are actually for: stepping out of a reading measure. A container already sized for a wide layout has nothing to break out of, and the right answer there is the content column itself.

In jedee

src/assets/css/global/compositions/wrapper.css is Eleventy Excellent stock, Ryan Mulligan’s technique credited in the file. --wrapper-width defaults to 85rem (variables.css) and .prose narrows it to 64rem, so a post body’s content column is the narrow one while the breakouts stay measured from it. That is a composition knob in the Configuring a layout composition sense — a block sets --wrapper-width rather than redeclaring grid-template-columns.

.prose-wrapper, which sets the same 64rem, is EE stock that nothing in jedee uses: .prose does the job on the same element. One more entry for What jedee kept from Eleventy Excellent's list of machinery left behind.

Four ways around the direct-child rule

Every post body hits the constraint, because the mf2 e-content wrapper (see Microformats) is an element between .wrapper and the markdown. jedee’s own addition to the composition is the subgrid pass-through:

@supports (grid-template-columns: subgrid) {
  .wrapper > .wrapper-pass {
    grid-column: full;
    display: grid;
    grid-template-columns: subgrid;
  }

  :where(.wrapper > .wrapper-pass) > * { grid-column: content; }
}

Used as <div class="e-content | wrapper-pass flow"> in post.njk and note.njk, and without the mf2 class in wiki.njk. Two things in there are deliberate. The :where() keeps the “default back to content” rule at zero specificity, so a single class like .popout still beats it — mirroring how .wrapper > * loses to the breakout classes at the top level. And the whole block is inside @supports, so a browser without subgrid gets a plain content-column container and breakouts that render at content width: narrower than intended, never broken.

The other three cases are wrappers jedee doesn’t control the shape of:

• A markup wrapper of your own — audio.njk and photo.njk put the location map in a plain <div class="popout">, the direct child, and let the component sit inside it.
• A shortcode’s generated markup — the image/lightbox shortcode takes a containerClass parameter that lands on the outer <div> it emits rather than on the inner <picture>, for exactly this reason. The <div> is load-bearing anyway: markdown-it rejects a bare <photo-lightbox @…> line because the @-prefixed WebC props aren’t valid HTML attributes.
• A WebC component root — <place-map> puts webc:root on the inner element, so a class="popout" on the invocation merges onto that, a grid grandchild under the component’s own <is-land>. The component takes a @breakout prop instead and applies the class to the <is-land> root, which is the real grid child. See The place map.

The pattern across all four: find the element that is genuinely the direct child of .wrapper, and get the class onto it. When that element is generated by something else, the component has to expose a way in.

Three breakouts that had nothing to break out of

On 2026-09-19 the second failure mode above turned up in three places. .prose narrows --wrapper-width to 64rem, but only when it is on the .wrapper element itself — the post layouts all do that, so their content column is 1024 and .popout is 1088. partials/archive-listing.njk puts .prose on a child instead (it is the intro paragraph’s class, not the page’s), so custom-property inheritance never reaches the grid and the archive wrapper stays at the stock 85rem. Its content column is 1360, and the .popout on /activities/'s map-and-table block measured 1424 — wider than every line of prose on the page, and 161px short of the .full header it looked like it was competing with. Two styleguide tables had the same class in the same wide wrapper.

All three had the class removed rather than the wrapper narrowed; 1360 is the width that page is designed at. The interesting part is the reporting: the misuse had been shipping for a while and was only visible above 1456px, so it took a wide display to see it at all. Every remaining .popout in the site is in a layout with .prose on the wrapper — the post types, the wiki, and the wiki’s own figures — which is the rule the class is worth holding to.

One thing the removal disturbed, and a correction worth recording with it. --table-edge-padding (see Tables) is var(--space-m-l), 31px at its maximum, applied as padding-inline-start to a table’s caption and first column, and it is tuned against the 2rem popout track: at popout width the table’s box starts 32px outside the content column and that 31px puts the first column’s text back on the content line. Two comments in table.css said so, and removing the breakout from the activities table looked at first like it had made them stale.

It hadn’t. The markdown renderer writes <div class="table-wrapper | popout"> around every table in a post, note or wiki body (Tables), and those bodies are all prose wrappers — so the great majority of the site’s tables are still in a breakout and the comments are still describing them accurately. What changed is only that the two hand-written tables outside a prose body are no longer, and there the 31px is now an inset that lines up with nothing. On the activities table the first column is the center-aligned icon column, so it reads as the icon sitting about 15px right of its column’s true center.

⚠️ The general lesson is about the comments rather than the CSS: a comment that explains one value by naming another value describes a pair, and a pair can be broken from either end while only one end is looking. The near-miss here was deleting an accurate comment because one of its several subjects had moved.

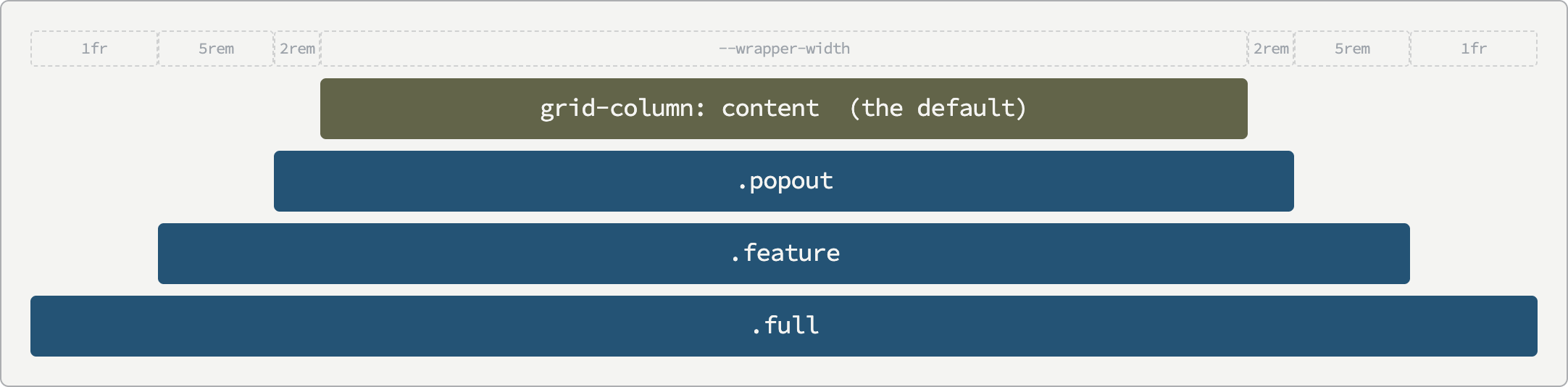

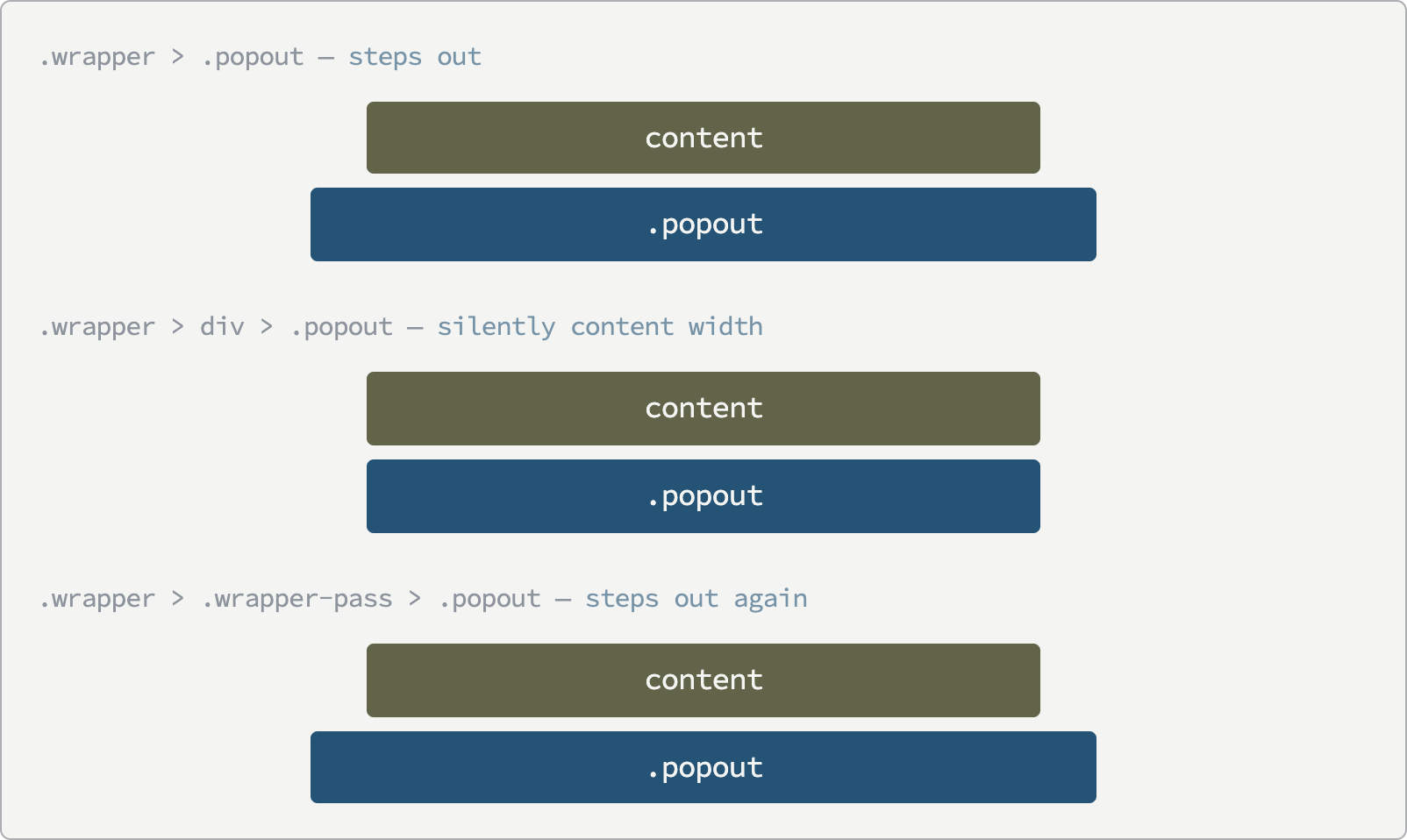

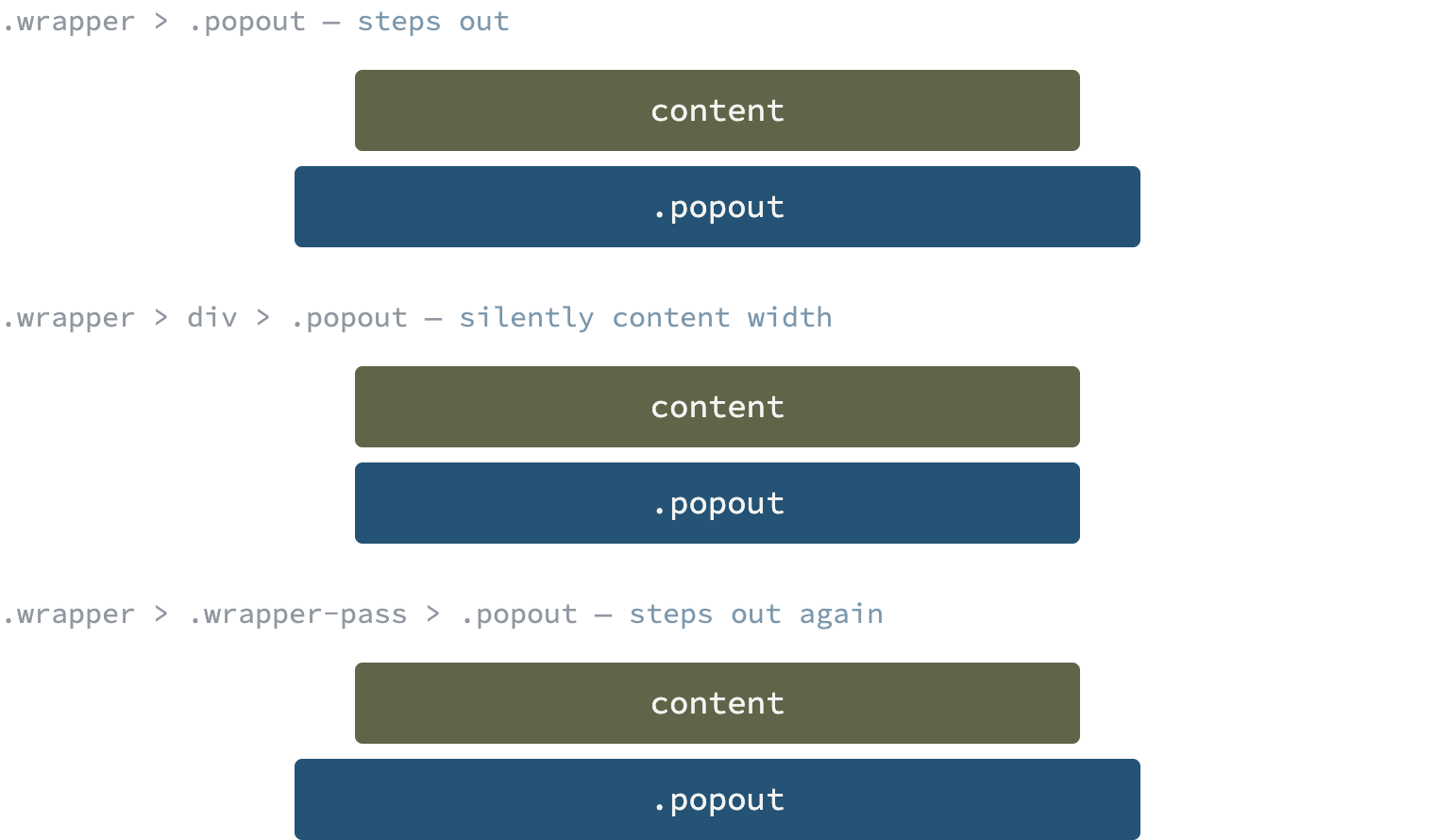

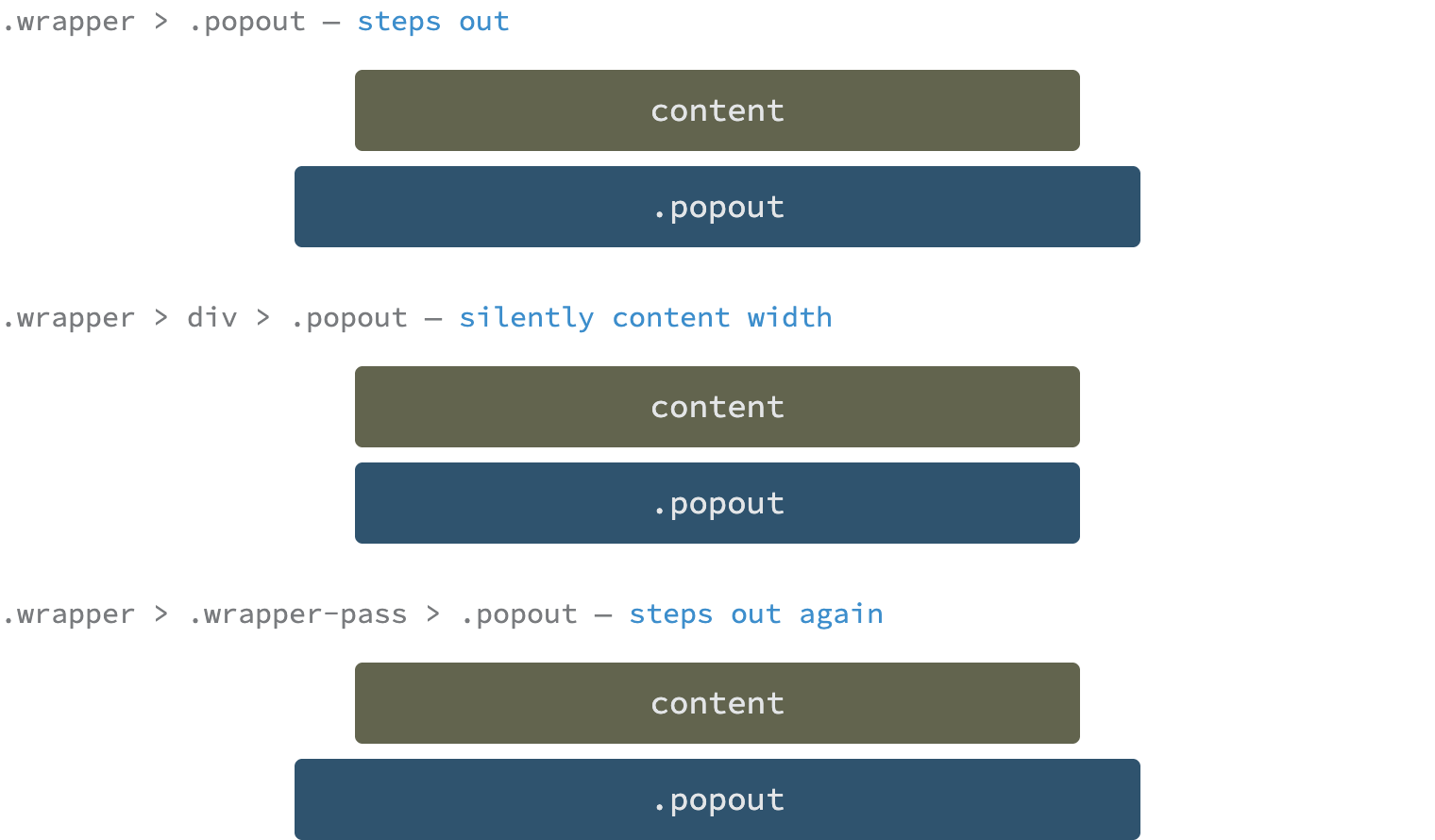

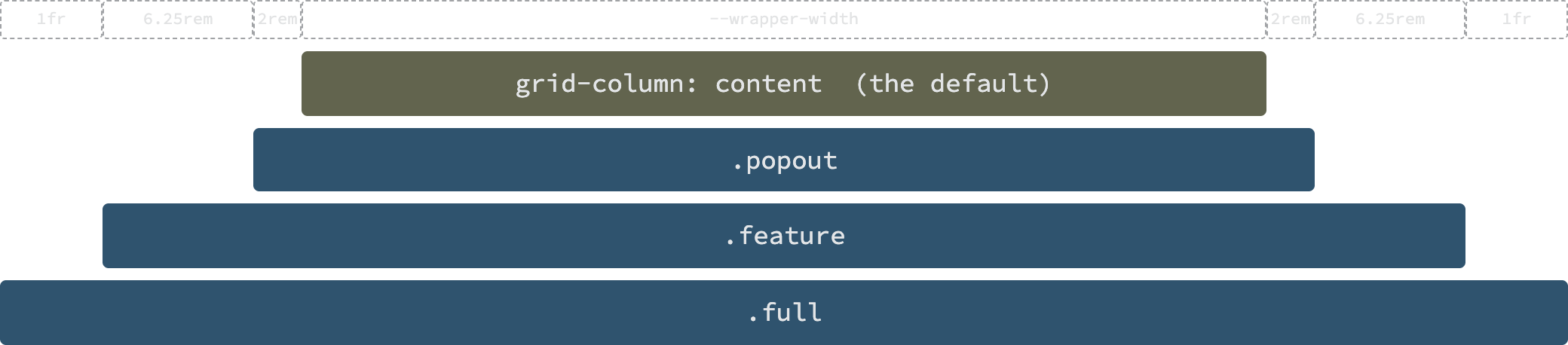

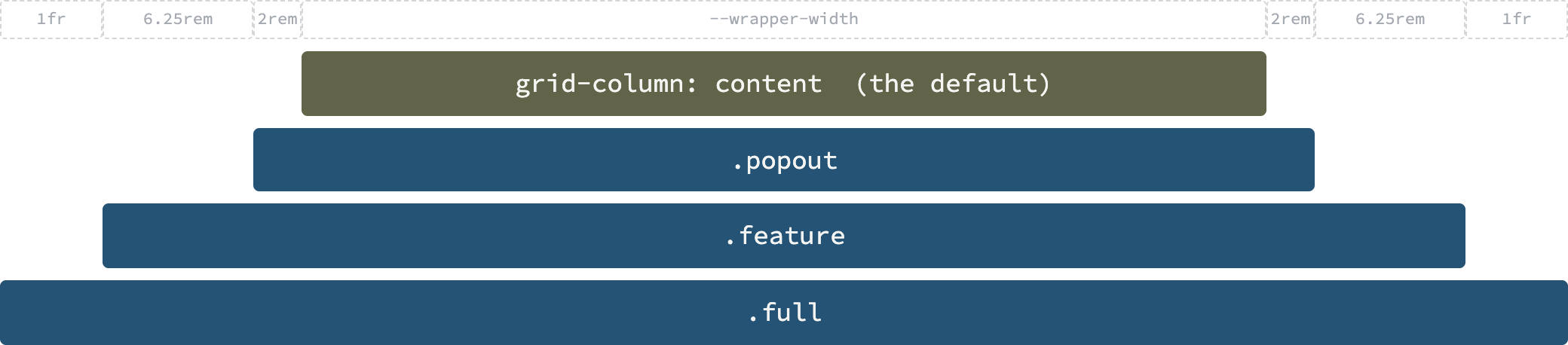

Both figures are src/wiki/_sources/layout-breakouts.html, drawn with real .wrapper elements against the site’s compiled global.css — the tracks, the gap clamp and the subgrid pass-through are the stylesheet’s rather than a redrawing. ⚠️ --gap is clamp(1rem, 6vw, 3rem), so the gutter in a shot is the shooter’s viewport’s, not the specimen’s; at 1400px it sits at the 3rem maximum, which is the gutter a desktop reader gets.

Source: src/assets/css/global/compositions/wrapper.css, checked against live code 2026-08-23. Technique and the file’s own credit: Ryan Mulligan, “Layout Breakouts with CSS Grid”. The track-sizing thresholds and the three misplaced breakouts: the session of 2026-09-19, measured in the browser against the compiled stylesheet. Raw source: src/_raw/dev-notes/How the popout breakout was pulled back to prose width.md.
