The place map

An interactive web map is a JavaScript widget: a library like Leaflet or MapLibre draws tiled imagery and vector shapes onto a scrollable canvas. That means it does nothing without JavaScript, and its keyboard and screen-reader story is often poor. The durable way to ship one is progressive enhancement — server-render the underlying data as ordinary HTML that stands on its own (a list of places with a link each, or a static map image), then let JavaScript find that markup and grow the live map above it. The HTML is the answer for no-JS visitors and assistive tech; the map is a convenience layered on top.

A recurring trap is coordinate order. GeoJSON — the standard shape for map data — writes each position as [longitude, latitude], x before y. MapLibre follows GeoJSON; Leaflet, and the way people say “lat/long” out loud, put latitude first. A track handed to the wrong one without a swap lands in the wrong hemisphere.

Map tiles come in two kinds. Raster tiles are finished pictures (PNGs) someone else rendered and styled. Vector tiles carry the geometry and names only, and the browser paints them with a style you write — every color, line width and label is yours. Protomaps packages OpenStreetMap as vector tiles in a single file (PMTiles) that any static host can serve, because the browser fetches just the byte ranges it needs. A recorded path is a GeoJSON LineString: one geometry.coordinates array of [lon, lat] points.

In jedee

<place-map> is a custom element, entirely jedee’s own (not Eleventy Excellent stock). It moved from Leaflet to MapLibre on 2026-09-17 so it could draw jedee’s own vector tiles in the site’s colors (see Our own tiles below). MapLibre is bundled straight into the component file by esbuild (about 270 KB compressed, against Leaflet’s 41 KB) and the whole thing is deferred behind is-land on:visible, so nothing loads until the map scrolls into view — the lazier cousin of The PhotoSwipe lightbox's on:idle. Until 2026-10-09 it was on:idle too, which downloaded the script and spent ~230 ms of a mid-range phone’s main thread on photo and audio pages whose map sits 1,700–2,400 px down, for visitors who might never scroll there. It is on:visible on:idle — both must hold — because on:visible alone broke the activity index the same day: is-land checks visibility as soon as the parser reaches the opening tag, the map’s <template> sits after the slotted 14,000 px table, and on a slow load the island went ready before the template existed, so the script was never inserted and the preloader swept forever. on:idle waits for the page’s load event, so the template is always there. The inline map drags and zooms with its buttons but never wheel- or pinch-zooms (that would trap the page scroll); a maximize button grows the same map instance into a modal overlay where wheel and pinch turn on, so pan/zoom state is preserved rather than rebuilt.

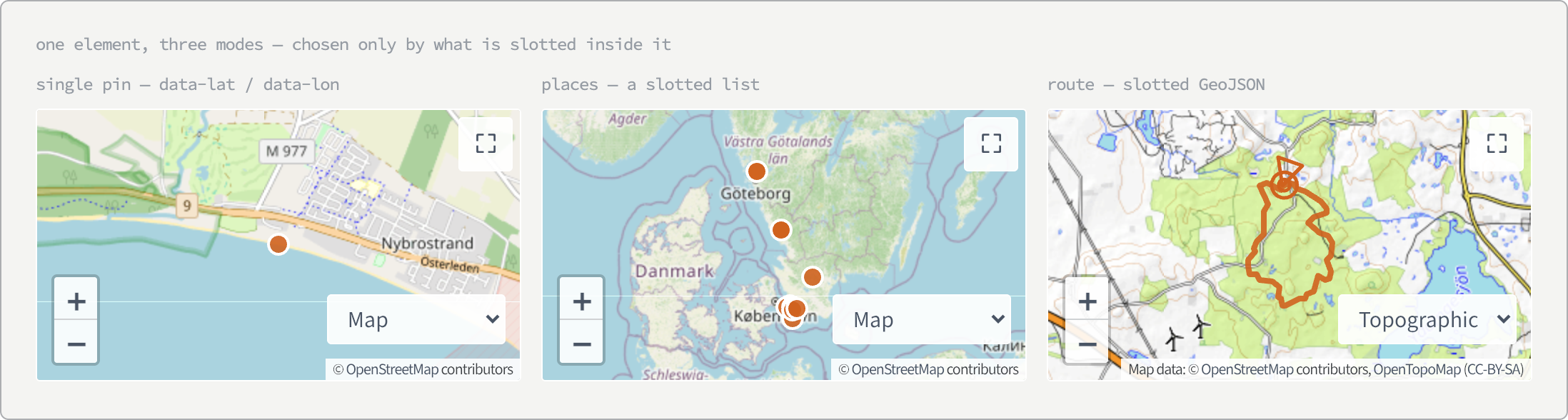

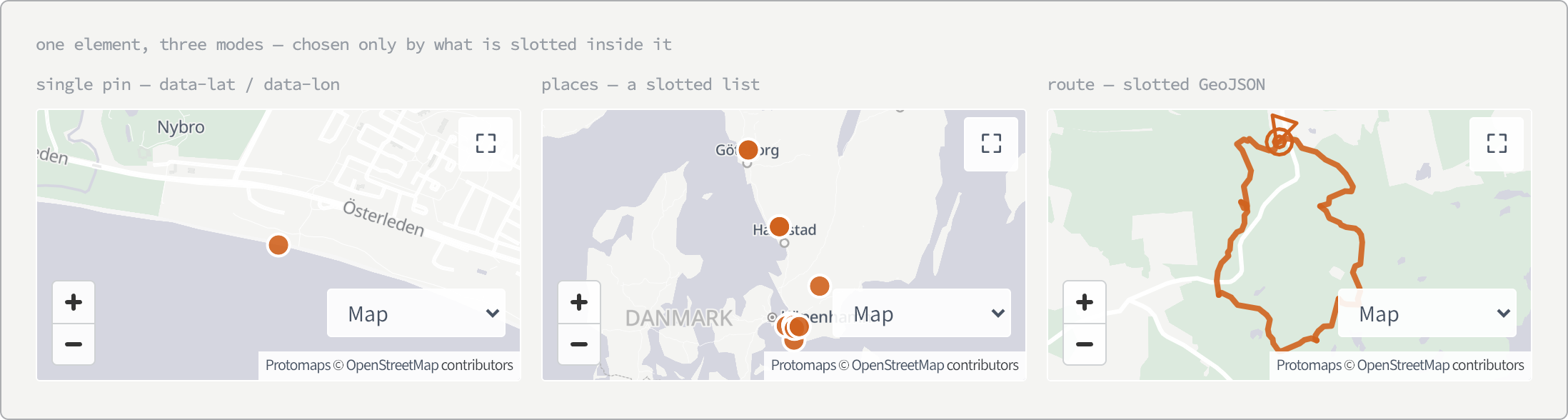

One element, three modes, chosen in connectedCallback purely by what markup is slotted inside it:

const routeScript = this.querySelector('script[type="application/json"][data-route]');
const placeList = this.querySelector('[data-place-list]');
if (routeScript) this.initRoute(routeScript);
else if (placeList) this.initPlaces(placeList);
else this.initSinglePin();

• Single pin (photo pages) — data-lat/data-lon on the element, with a static <a><img> Geoapify map image as the slotted fallback.

• Places (the activity index) — a slotted [data-place-list]: since 2026-09-15 the activities table, one <tr data-lat data-lon> per located activity, each dot named and linked from the row’s first link (Tables). The table is the data source and the no-JS / screen-reader path: map markers have poor keyboard and SR handling (Leaflet’s were broken upstream; MapLibre’s dots are painted on a canvas and not focusable at all), so nobody is forced through the map to reach a post. JavaScript reads the rows that carry coordinates and drops one dot each into the box above; rows without coordinates stay in the table, unmapped. Each row’s data-activity sets a --place-color in place-map-places.css, from the type’s --color-activity-* token (see below), resolved once per distinct value and shared by every row with that color: orienteering orange, hikes green-vivid, runs blue-vivid. Resolving it once per row forced 280 page layouts and froze the page for over a second (Forced layout).

  This mode used to group the list by activity type, with the group headings upgraded into filter toggles and mirrored as chips on the map surface. All of that came out on 2026-08-15, when the page became a single chronological index: the grouping was the only thing standing between the reader and a plain newest-first list of everything. Two lessons stayed behind. First, reserve the map’s space server-side — the box was built and prepended on idle, so the whole page dropped by 16:9-of-the-column a second after paint; rendering an empty .place-map-live in the markup and having buildBox() adopt it takes the shift to zero. Second, beware the double reverse: the collection was already newest-first from byCategory, and the located filter reversed it again, so the visible list ran oldest-first for months without anyone noticing.

• Route (activity pages) — a slotted <script type="application/json" data-route> holding a GeoJSON LineString. This is the newest mode and the rest of this page is about it.

A recorded route as the third mode

The track for an activity is committed as a sibling file next to the post: <Post Title>.geojson beside <Post Title>.md. It’s extracted from the Strava export by a one-off local script (_local/generated/extract-route.py), which handles both source formats the export ships:

• FIT files store positions as semicircles — a signed integer where a full circle is 2³² — so each coordinate is multiplied by 180 / 2³¹ to get degrees.
• GPX files are already longitude/latitude in degrees, read with a different parser.

Either way the script downsamples the thousands of recorded points down to a light path, but keeps the exact first and last points untouched so the start and finish markers sit where the activity really began and ended. It writes a LineString with [lon, lat] coordinates, GeoJSON order.

At build time the file is inlined into the page. A filter reads the sibling by swapping the post’s extension:

// src/_config/filters/route-geojson.js
export function routeGeoJSON(inputPath) {
  const p = inputPath.replace(/\.md$/, '.geojson');
  return fs.existsSync(p) ? fs.readFileSync(p, 'utf8') : '';
}

It takes page.inputPath, not page.fileSlug. Eleventy strips a leading date from fileSlug, so a date-prefixed filename (2026-08-02 Gotland dag 2.md) would look for 2026-08-02 Gotland dag 2.geojson under the slug gotland-dag-2 and miss. inputPath is the real path on disk. activity.njk slots the result only when it exists, so an activity with no recorded track renders no map at all:

{% set routeJson = page.inputPath | routeGeoJSON %}
{% if routeJson %}
  <place-map @place="this route">
    <script type="application/json" data-route>{{ routeJson | safe }}</script>
  </place-map>
{% endif %}

Drawing it, the GeoJSON goes straight into a MapLibre geojson source — no coordinate swap, since MapLibre reads [lon, lat] natively. The line’s color is read from --color-route-line, so it follows the theme.

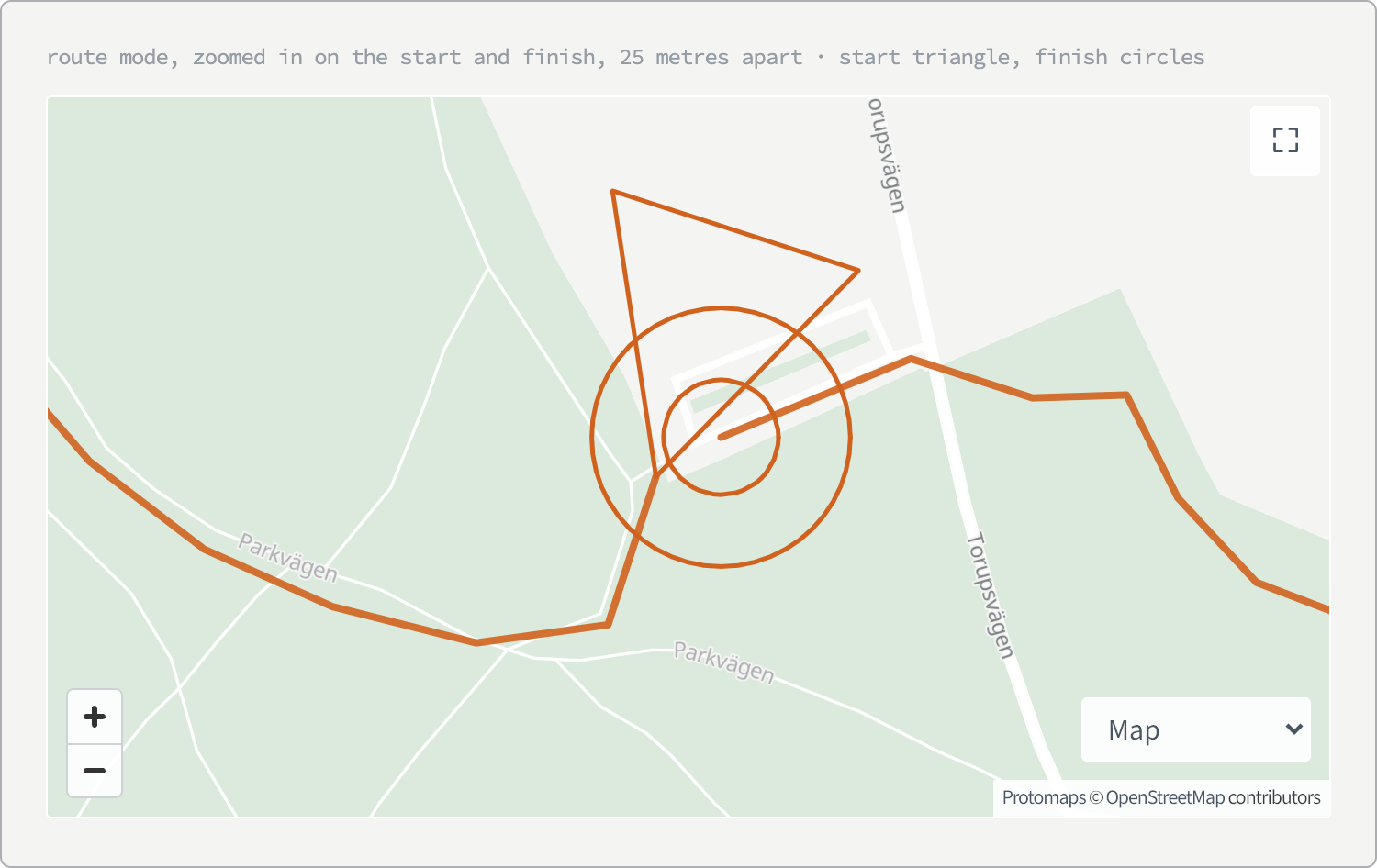

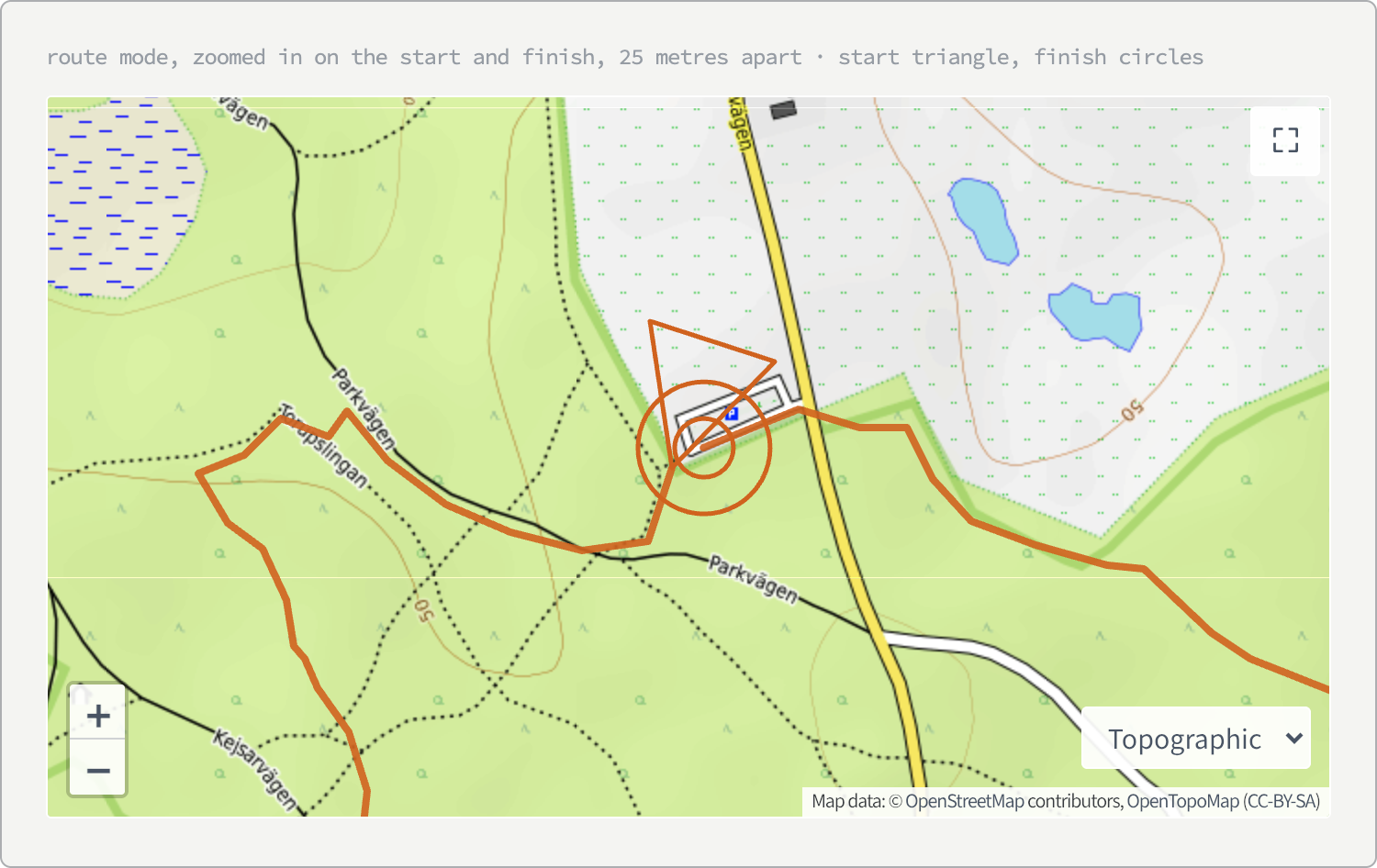

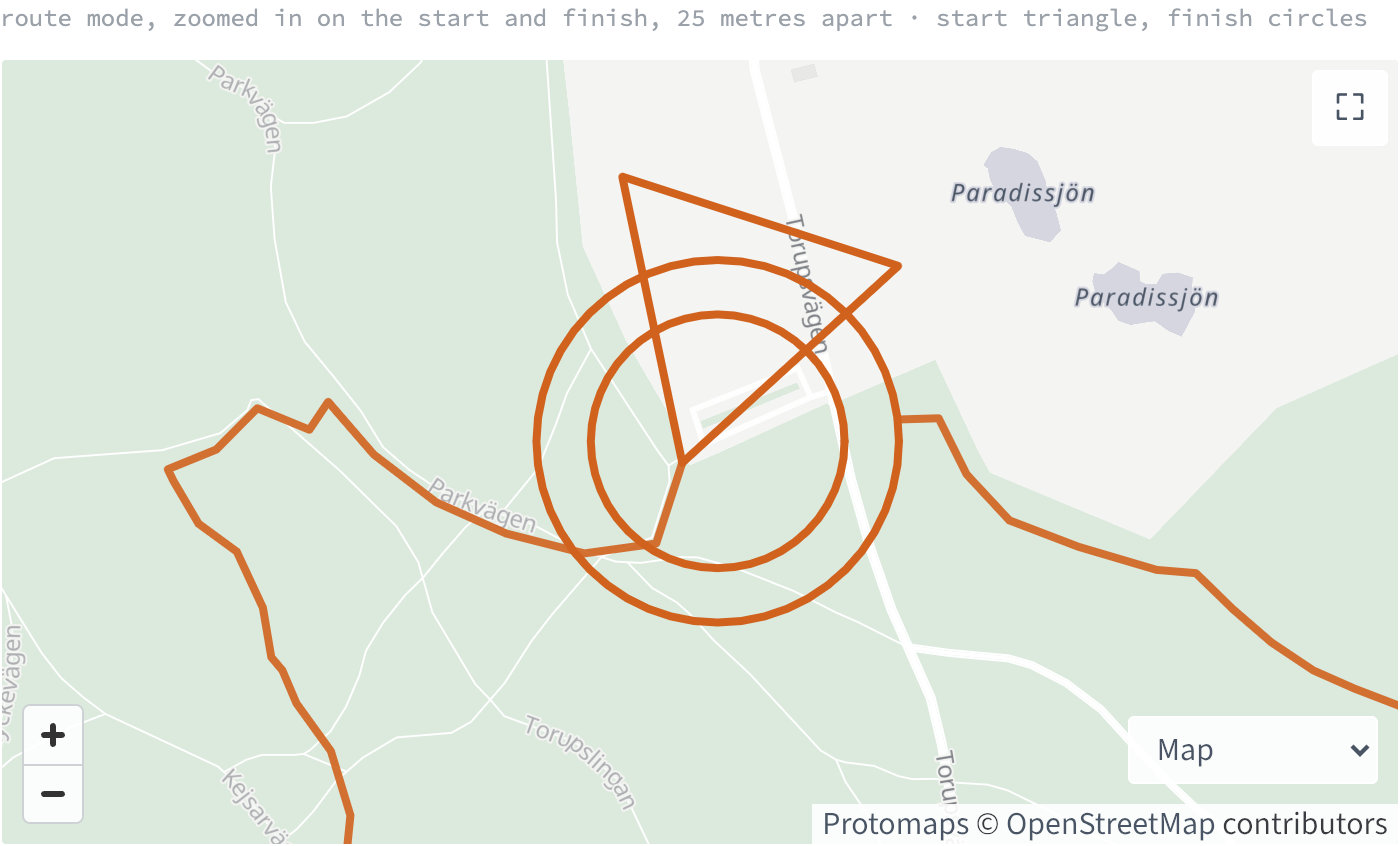

The start and finish are the standard orienteering course symbols — a triangle at the start pointing down the first leg, two concentric circles at the finish. They’re built in screen pixels at the fit zoom and then unprojected to lat/lon, so they become geographic shapes in their own line layers: they grow and shrink with the map like the track does, with no per-zoom JavaScript. (The Leaflet version got the same result from an L.polygon and two L.circles; an even earlier one used fixed-size HTML markers that needed a scale() on every zoom.) The circles are 48-point rings, since a MapLibre line layer has no circle shape.

The start triangle’s apex is pinned exactly on the first point and the body trails back along the reverse of the travel direction. Centring it on the start, as a printed course does, was tried and reverted: the opening GPS fixes wander around the start, so the line was cut at odd angles near the triangle and the shape looked misplaced. At the other end the line stops where the outer finish circle begins, cut in screen pixels at the fit zoom like the symbols themselves (trimToFinish in place-map.js). The route’s fit padding is derived from the symbol sizes, since the triangle and circles reach past the track’s ends and a fixed 20 px clipped the finish at the map’s edge. The symbols are drawn as thick as the line (LINE_WEIGHT), and the inner finish circle sits at about 70% of the outer, the IOF’s 5 mm inside 7 mm. ⚠️ Keep the gap between FINISH_OUTER and FINISH_INNER wider than LINE_WEIGHT: thick rings drawn close together merge into one blob at the fit zoom, which is why the symbols grew when they took the line’s weight. The heading is measured to the first track point at least ~25 m out, not the next GPS fix — the opening fixes cluster on the spot and a two-point bearing there is pure noise, so the triangle would point a random way. The shapes are hollow and share the line’s color, the site’s accent orange. Orienteering overprint is purple, and a purple was tried — but the line has to read over several different tile sets, and it vanished on some of them; the accent orange reads on all of them. There’s deliberately no halo. None are interactive, since the map isn’t the screen-reader path here.

On first paint a short intro sequences the pieces: while the tiles load a preloader counts to 100 (see Waiting for the first tiles below), the canvas fades up as it fades out ([data-map-loading] in place-map.css), then the start triangle fades in, the line draws itself start-to-finish, and the finish is revealed only once the line reaches it — all gated behind prefers-reduced-motion, so reduced-motion visitors just get the finished map. A canvas map has no SVG path to animate with stroke-dashoffset, so the draw is a line-gradient (which needs lineMetrics: true on the source): a step at the drawn fraction of the line, solid before it and transparent after, moved forward every animation frame. A theme flip mid-draw rebuilds the style, and setPaintProperty throws “Style is not done loading” until it’s back — the loop skips those frames, and keeps the progress in component state so the rebuilt style carries it.

The no-JS answer for a route is the honest one: no map, but the stats and the “View on Strava” link below carry the route. A blank or broken map is never shown — malformed JSON or too few points also just leaves the page mapless with the Strava link standing. Route lines live on the activities archive pages; that page’s overview map is the groups mode of this same component.

Widening the map: the breakout must go on the <is-land>

The route map sits one step wider than the prose column — the .popout breakout — so the track has room to read. Getting the breakout class onto the right element is the trap. <place-map> is a WebC component whose template is <is-land on:visible on:idle><place-map webc:root webc:keep>…. Because webc:root is on the inner <place-map>, any attribute on the invocation (class="popout") merges onto that inner element — which is a grid grandchild (the <is-land> wraps it), and breakout classes only work on a direct grid child. So a class on the invocation silently does nothing; the map stays at content width.

The fix routes the class onto the <is-land> itself via a prop: the component takes :class="breakout || ''" on its <is-land>, and activity.njk passes @breakout="popout". Two details that bite: the || '' guard is load-bearing — a bare :class="breakout" throws Cannot read properties of undefined (reading 'toString') at build time for every caller that omits the prop (the places index, the single-pin photo maps), and || false renders a literal class="false" because WebC stringifies a falsy :class rather than dropping it; only || '' cleanly omits the attribute. The breakout also collapses back to content width on narrow screens automatically — that is the .wrapper grid working as designed, not a bug.

A <script> is only hidden by a default, and a default is easy to beat

The route JSON is slotted into the component as an ordinary <script type="application/json" data-route>. Nothing hides it but the browser’s own UA stylesheet, which carries script { display: none } — a real rule in the lowest-priority sheet there is, not a property of the element. Any author rule that reaches the element and sets display to something else puts the script’s text on the page.

That is what happened here. The component’s stylesheet gives whatever follows the map some air:

place-map > :is(.place-map-live, .place-map-static) + * {
  display: block;
  margin-block-start: var(--space-l);
}

The display: block is deliberate: on /activities/ the element after the map is <sortable-table>, an unregistered custom element, so it is display: inline by default and would ignore margin-block-start entirely. On an activity page the element after the map is the route script instead — same selector, same rule — and about 4 kB of coordinates printed under the map in the body text. Narrowed to + :not(script).

Two things worth keeping. The first is that display: block on a + * selector is a wider hazard than it looks: the sibling combinator picks the next element, and <script>, <template>, <style> and <link> are all elements that happen to be hidden only by a default. The second is a small relief — :not(script) takes the specificity of its argument, a type selector, so the fix raised the selector from (0,1,1) to (0,1,2) rather than lowering it, and nothing that had been winning against it started losing.

The same thing happens from the other direction: a route map sits inside .prose, so the prose rules reach into MapLibre’s own markup. Its attribution is a <details>, and prose-rhythm's .prose details > summary + * gave the text inside a half-line top margin, doubling the white box behind it. place-map.css sets that margin back to 0. ⚠️ Any third-party widget placed inside .prose inherits the prose spacing, so check its built markup for elements the prose rules target.

Our own tiles

Since 2026-09-17 every map opens on jedee’s own basemap: a Protomaps extract of Sweden (sweden-20260916.pmtiles, 4.4 GB, full detail to zoom 15), cut from the free daily world build with pmtiles extract … --bbox=10.5,55.0,24.5,69.2 --maxzoom=15 and hosted on the site’s R2 bucket. It replaced plain OpenStreetMap tiles, whose dark mode was a CSS invert() filter — CARTO’s ready-made dark basemap started demanding an API key in August 2026. Everything the map needs besides the tiles is self-hosted in src/assets/map/: the label fonts (only the Latin, Greek and Cyrillic glyph ranges — MapLibre asks for a range per character block and draws a missing one locally, with a console warning) and the icon sprites.

The colors are CSS custom properties, --map-land, --map-water, --map-park, --map-buildings, --map-road, --map-road-minor, --map-label* and --map-dot-stroke, set in place-map.css from the site’s tokens with dark-mode overrides. On every render the component reads them and passes them to Protomaps’ theme code as a custom “flavor”, so tweaking the map is a CSS edit, and a theme flip just re-renders. Two traps:

• MapLibre can’t parse color-mix() or oklab(), and a custom property’s computed value is the unresolved text. The component resolves each one by painting it into a 1×1 canvas and reading the pixel back as rgba(), and remembers the result by value, because each probe forces a layout of the whole page (Forced layout).
• The properties sit on the map canvas, not on <place-map>, because the maximize button moves the canvas into an overlay outside the element, where it would stop inheriting them.

The tile file is empty outside Sweden. A single pin, place list or route that reaches past the box opens on Topographic instead (COVERAGE in place-map.js).

The whole style (base layers plus the dots, route and symbols) is rebuilt by one render() and applied with setStyle(style, { diff: true }), which changes only what differs. The very first render must skip diff: diffing against the empty placeholder style before it has loaded logs a warning and rebuilds anyway.

⚠️ MapLibre loads a style on an animation frame, and browsers pause those in a hidden tab. A map on a background tab (or in Claude’s Browser pane while it’s hidden) stays blank with isStyleLoaded() false until the tab is shown — not a bug.

Waiting for the first tiles

Tiles arrive over the network, so between the page’s first paint and a drawn map there is a gap of a second or more — several on a slow connection, where the 289 KB map script alone takes a while. The preloader covers it as one movement in phases, one thing at a time, the way Flash intros baked their loading into the transition:

• The box fades in in --map-park, the map’s own forest green (350 ms). A loading state that is already one of the map’s colors reads as the map arriving rather than as a placeholder.
• After a 100 ms pause, the site logo grows in from 200% to its resting 6rem with the number hidden (500 ms). On the activity index the preloader is in the page HTML, so this starts on the first paint without waiting for the script; elsewhere the script creates it. The logo is a conic-gradient masked to its shape (the path is copied into place-map.css, since logo.svg isn’t published), filling from 30° so the stem fills last, in the box’s green darkened 12% (lightened 12% in dark mode, through --map-park-shade, where a darker green sank into the dark track). A sweep from the centre crosses the straight-sided stem at a slant and leaves a wedge-shaped sliver at the end, so a second layer — a linear-gradient sized and positioned to the stem’s rectangle in the logo’s 100-unit grid — covers it and wipes left to right over the last 30° of the sweep: clamp(0, (progress − 91.667) / 8.333, 1). At 91.667% the sweep’s edge is the vertical line through the logo’s centre, which is the stem’s left edge, so the hand-over doesn’t show.
• If the script still hasn’t arrived after 1.4 s, a comet sweeps round inside the logo: a ::before with a fading conic gradient, rotated by a CSS animation every 1.5 s. A plain rotation keeps turning while the main thread is busy, where a script-driven spinner would freeze. On broadband the count starts before the delay ends, so the comet never shows.
• The count starts once the reveal has finished and the script has arrived: 0 → 100 along one easeInOutQuad sequence of about 1.8 s. The real load never sets the number. It only steers the sequence’s speed: while MapLibre hasn’t fired its first idle, the speed falls off gradually from early in the count, so a slow load stretches the whole count instead of piling up at 98–99, and the speed glides back once the map is ready. The maths is a pure function in src/assets/scripts/preloader-count.js, kept out of the bundled script so _local/tests/preloader-count.test.js can run it at a simulated 60 fps for several load times.
• At 100 the logo grows back to 200% and fades out over 400 ms as the canvas ([data-map-loading] until then) fades in. A route’s intro waits for that fade (revealed in place-map.js), so the line is never drawn across an empty box.

⚠️ The script adopts the server-rendered box and empties it, but must leave the preloader node where it is: taking it out and putting it back, as replaceChildren() does, counts as a new element and replays its reveal. The canvas is then prepended so the preloader stays on top. ⚠️ The count waits on getAnimations() of the preloader itself, never { subtree: true }, which would include the endless comet and never finish.

The knobs: COUNT, BRAKE and GLIDE in preloader-count.js, COUNT_PAUSE and MAP_FADE in place-map.js, and the durations and delays on .place-map-preloader in place-map.css.

A caption meant for no-JS visitors will flash. The activity index renders its map box server-side to reserve the space (Layout shift), and the caption inside it — Map of my activities — showed for as long as the island took to hydrate. It is now hidden under @media (scripting: enabled), the mirror of the scripting: none rule in The main menu: the text is only for the visitor who will never get a map, and visibility: hidden keeps the box’s height either way. Pre-hydration text is worth a second look in general — it is written for a case that most visitors pass through rather than land in.

Reduced motion removes the fades, the scaling and the comet (the logo shows dimmed until the count starts); the count itself still runs, since a changing number isn’t motion. Without JavaScript the preloader is hidden under @media (scripting: none), since nothing would ever finish it.

Coming back skips it. A page reached by Back or Forward that the browser had to reload (no back/forward cache) shows no preloader: the canvas stays hidden until the first tiles are drawn, which is usually well under a second, because the tiles are already in the HTTP cache. place-map.js checks the navigation type (CAME_BACK). The cache itself is lost to any unload handler in the page, and an extension’s content script counts. On 2026-10-11 none of the site’s own scripts had one, but a Helium extension did. ⚠️ The dev server never gets the back/forward cache, because its live-reload connection blocks it.

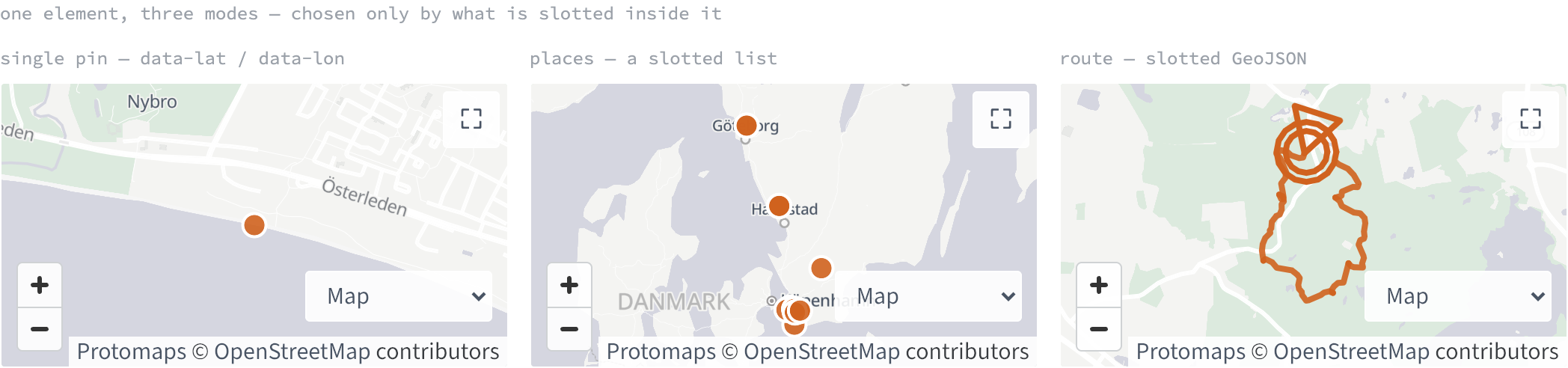

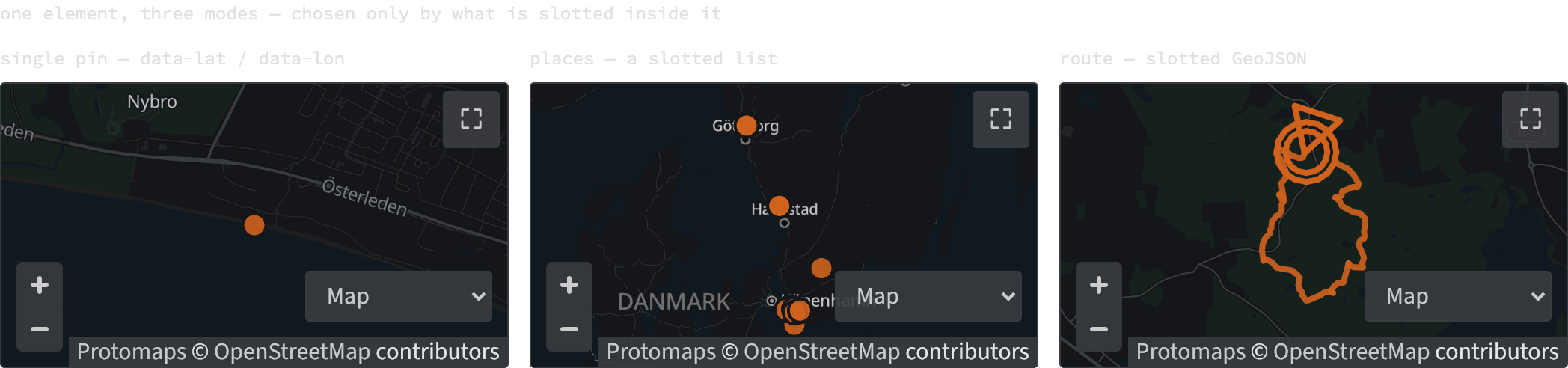

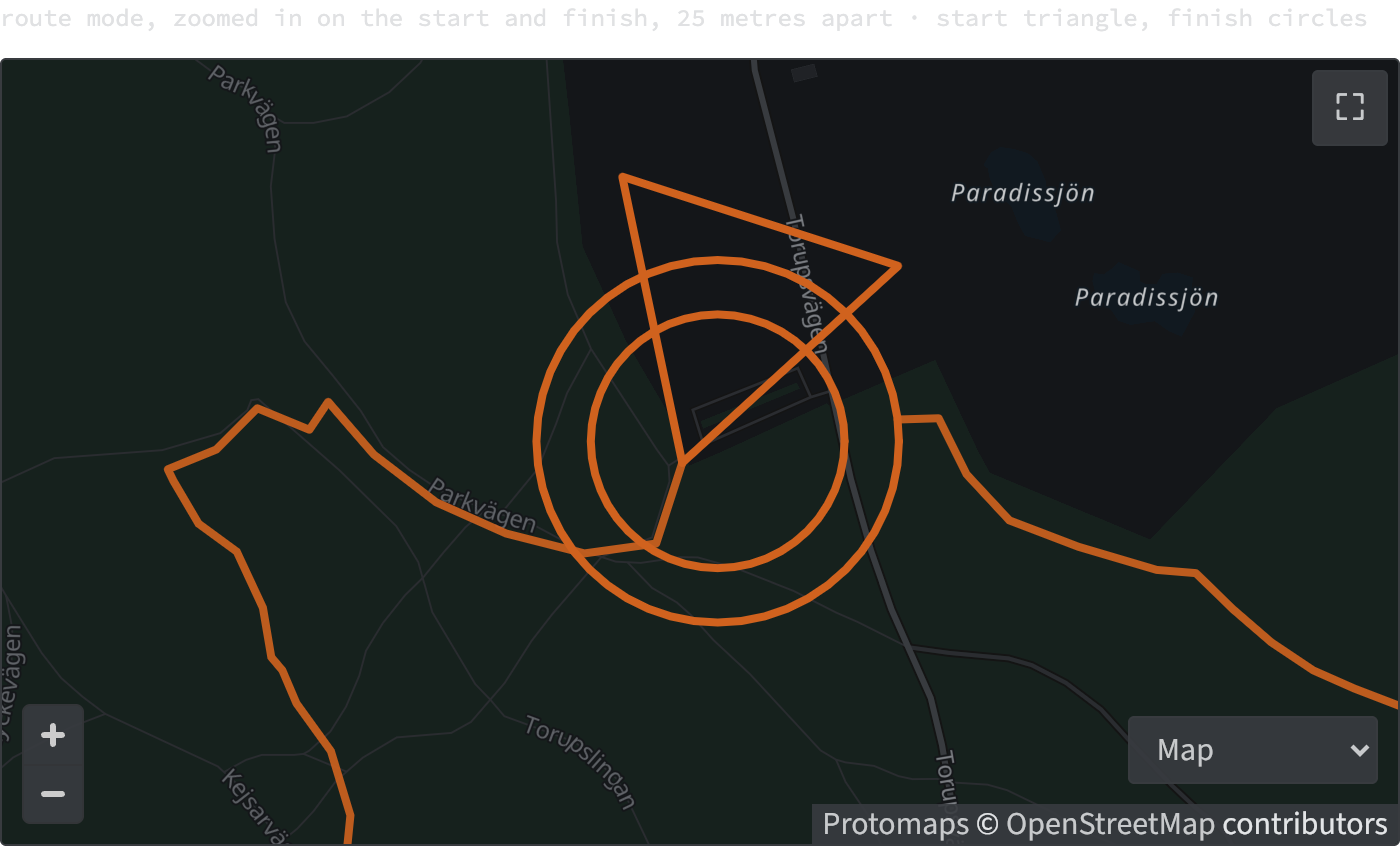

One declaration, two themes

The map’s colors are CSS custom properties — --map-land, --map-water, --map-park and seven more — set on .place-map-live and on the canvas, and read back by place-map.js on every render, so a theme flip or a devtools tweak redraws the map without touching JavaScript. They are declared in three blocks: a light one, a [data-theme='dark'] one, and a prefers-color-scheme: dark copy of the second. The dark blocks override only the properties that actually differ.

Every property the dark blocks leave out is served by the light block’s single declaration, in both themes. Raising the light park tint from 8% to 12% also raised the dark one, because dark had never declared --map-park; holding dark at 8% took a new declaration in each dark block. Before changing a themed custom property, check whether the other theme overrides it — one that appears once is shared, and the diff reads the same either way. The mirror of Undefined custom properties, where the reference is the thing that is missing rather than the override.

The dots’ colors are read on every render too. Each activity type has one color, --color-activity-* in variables.css, used for its map dots, its icon in the table and its icon on the post’s meta line. Orienteering changes shade per theme (orange-600 in light mode, orange-300 in dark) so it is never as light as the hike green. Under red–green color blindness, lightness is the only thing that tells the two apart: the old shared orange-500 measured 5.8 from the green under simulation, and the new pair measures 11.0 in light mode and 15.1 in dark. Until 2026-10-11 the places mode read each dot’s color once, when it built the dots, which was harmless while every color was the same in both themes. With a color that changes per theme, a theme flip left the map in the old theme’s orange. ⚠️ Any color that differs between themes has to be read inside overlays(), not once when the map is built.

A route page’s line takes the same color: the layout passes @activity to <place-map>, which renders it as data-activity, and place-map-places.css sets --color-route-line from the type’s color. So an orienteering course is orange, a run blue and a hike green. ⚠️ A plain attribute on <place-map> in the layout is dropped by WebC; only the props the component declares (:data-*) reach the element. ⚠️ On the map, orienteering’s shade follows the map under it rather than the page theme. Topographic tiles are always light and satellite imagery always dark, so a page-theme color put the light orange on light topo in dark mode and the dark orange over forest in light mode. place-map.js sets data-map-surface (light or dark) on <place-map> on every render, and place-map-places.css swaps --place-color and --color-route-line to --color-activity-orienteering-on-light or -on-dark. The table and meta-line icons sit on the page, so they keep following the theme.

A base-layer style switch

A control in the bottom-right corner switches between Map (jedee’s tiles) and two fixed raster styles: Satellite (Esri World Imagery) and Topographic (OpenTopoMap, contours and trails). Every mode opens on Map, routes included; before the move, routes opened on Topographic. One tile-source gotcha: Esri’s URL template is {z}/{y}/{x} — row before column, the reverse of the usual order.

The control is a native <select>: a base-layer choice is single-select, and <select> is the accessible native control for that (keyboard and screen reader for free, its option list drawn by the OS). It’s a MapLibre control, so it’s a child of the map canvas and rides into the maximize overlay with no extra code. Switching just sets the base and re-renders. MapLibre’s attribution control credits only the sources that currently have visible layers, so the credit follows the switch on its own (the Leaflet version needed a careful add order to get attribution removal right). In a bottom corner the last-added control sits nearest the top, so the attribution is added first and the switch second.

The inline map keeps the old gesture rules: no wheel or pinch zoom (that would trap the page scroll) except with Ctrl or ⌘ held, which is also how a trackpad pinch arrives; rotation and tilt are off everywhere.

The move to MapLibre and jedee’s own tiles: the session of 2026-09-17, verified against place-map.js and place-map.css. Source: _local/design/Plan - GPX route line on the activity map.md (2026-08-11), verified against place-map.js and route-geojson.js. The base-layer switch: _raw/dev-notes/How the place map switches tile styles.md (2026-08-11), verified against place-map.js and place-map.css. The start/finish symbols were reworked from divIcon HTML markers into native vector shapes on 2026-08-16 (commit 30aade8), re-verified against place-map.js and place-map.css. The colors and their theme blocks: the session of 2026-09-18, src/_raw/dev-notes/How the map colors came back from Penpot.md. The route script’s display trap: the session of 2026-09-19, src/_raw/dev-notes/How the popout breakout was pulled back to prose width.md. The preloader, the trimmed line, the symbol-sized fit padding and the IOF finish proportions (and the centred start triangle, tried and reverted): the session of 2026-10-04, verified in the browser against place-map.js and place-map.css.
